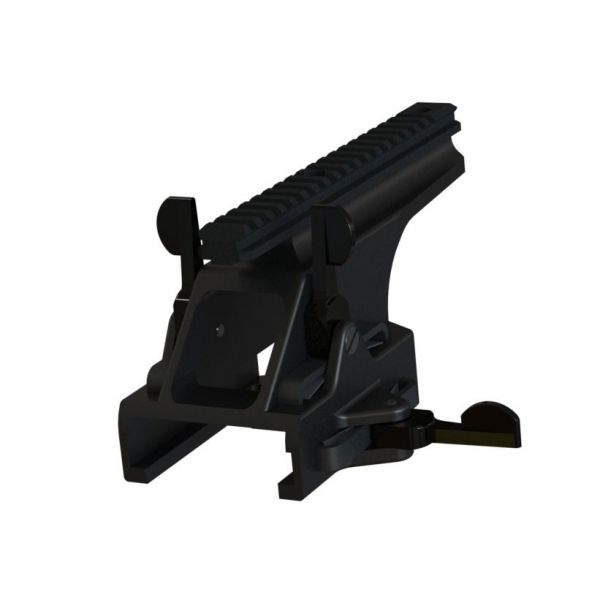

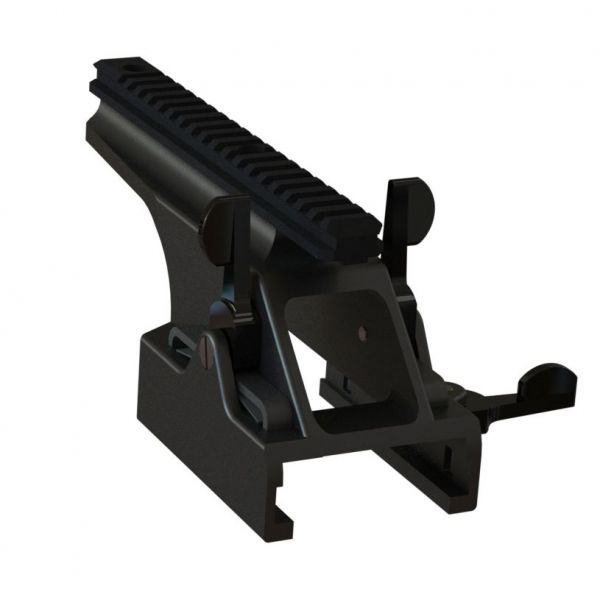

3 Lever Clamp
The sight mount is designed to provide a user fit; single hard mounting point for a sight conforming to the Mil Std 1913 profile (Picatinny), onto a HMG or 40mm Mk 19 GMG without special tools.
The mount does not require the alteration of the parent platform, and can be fitted and removed by the user.
Technical Specification
| Weight | 0.84 kg |
|---|---|
| NSN | 1240-99-616-7816 |
| Pt No | 3645 |
| Weapon Fit | .50in HMG (M2), .50in HMG (QCB), 40mm Mk19 Grenade Machine Gun |
| Rail Qty | 1 |
| Rail Type | Mil Std 1913 Picatinny |
| Rail Length | 205mm |
